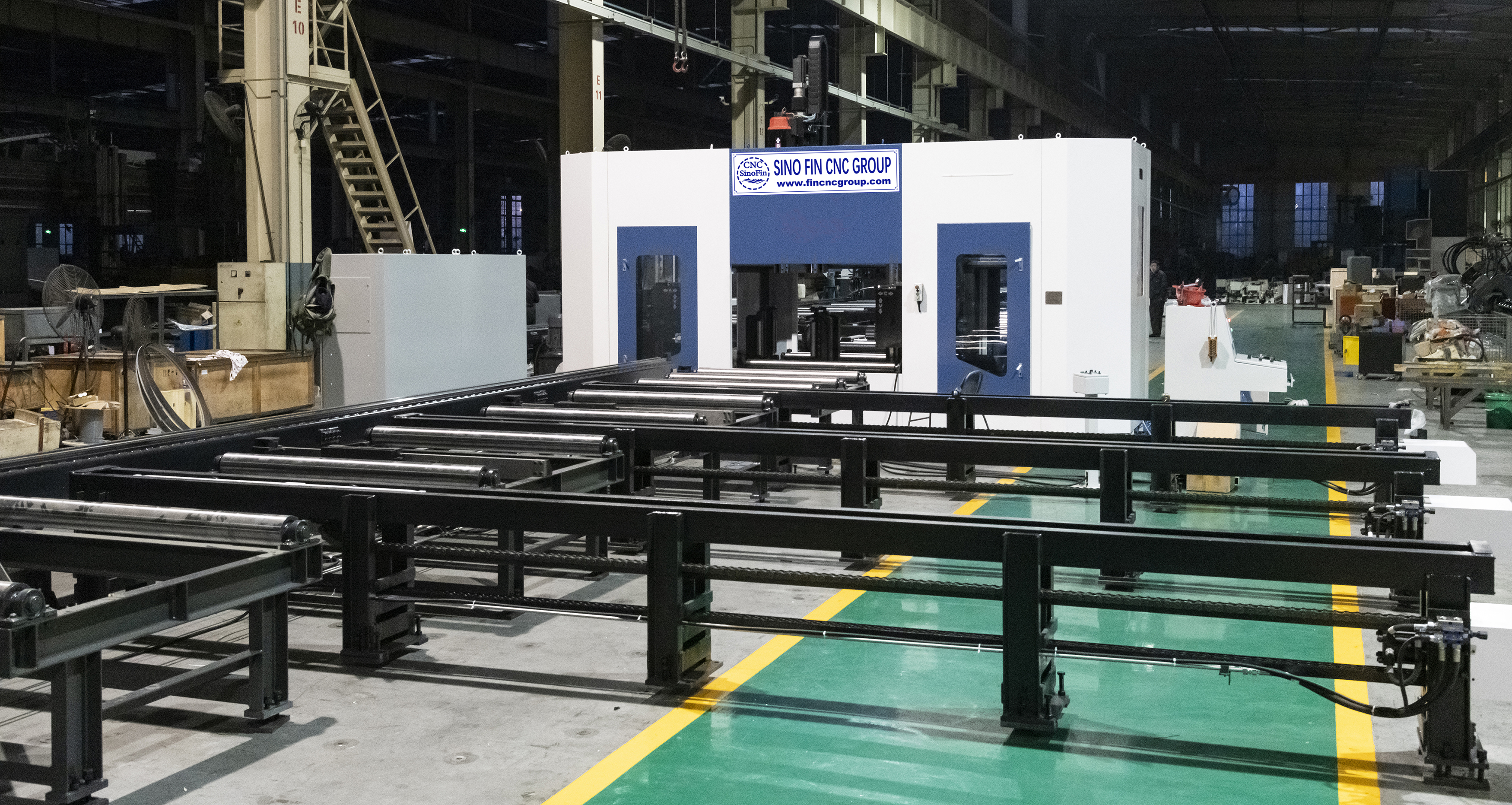

CNC 3D H beam drilling machine

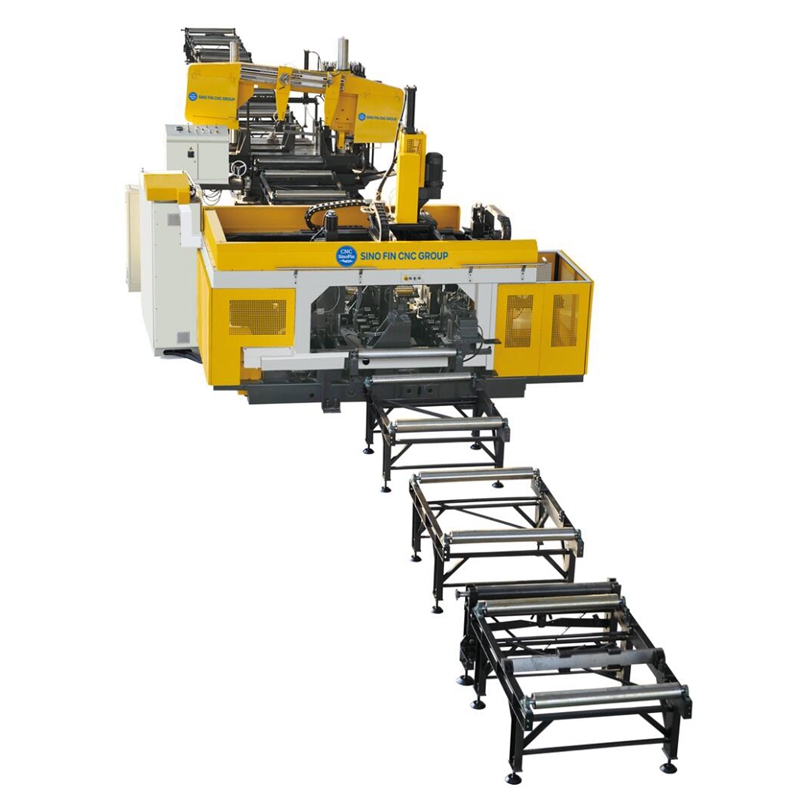

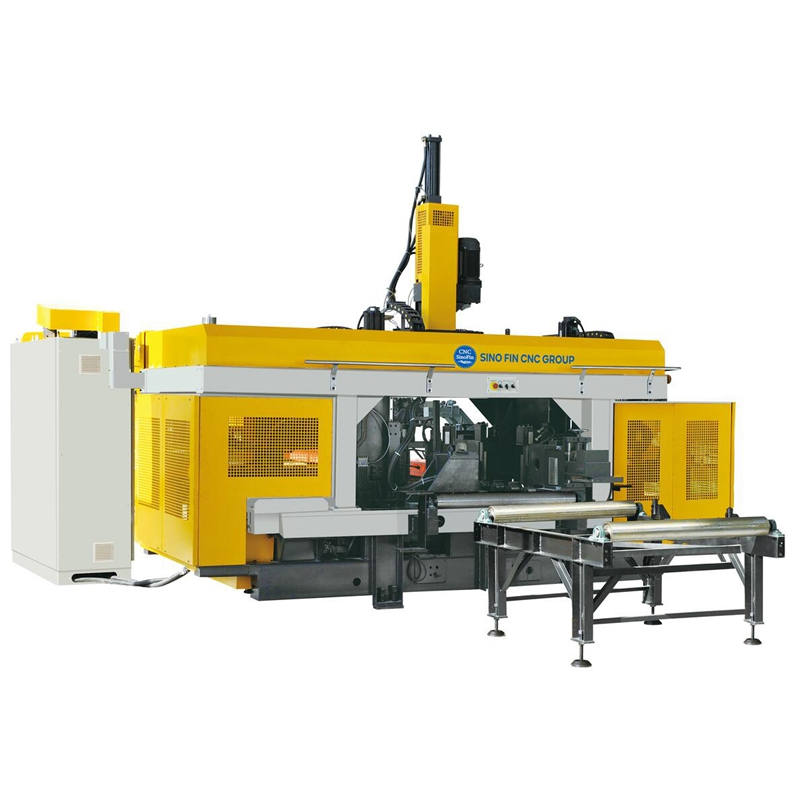

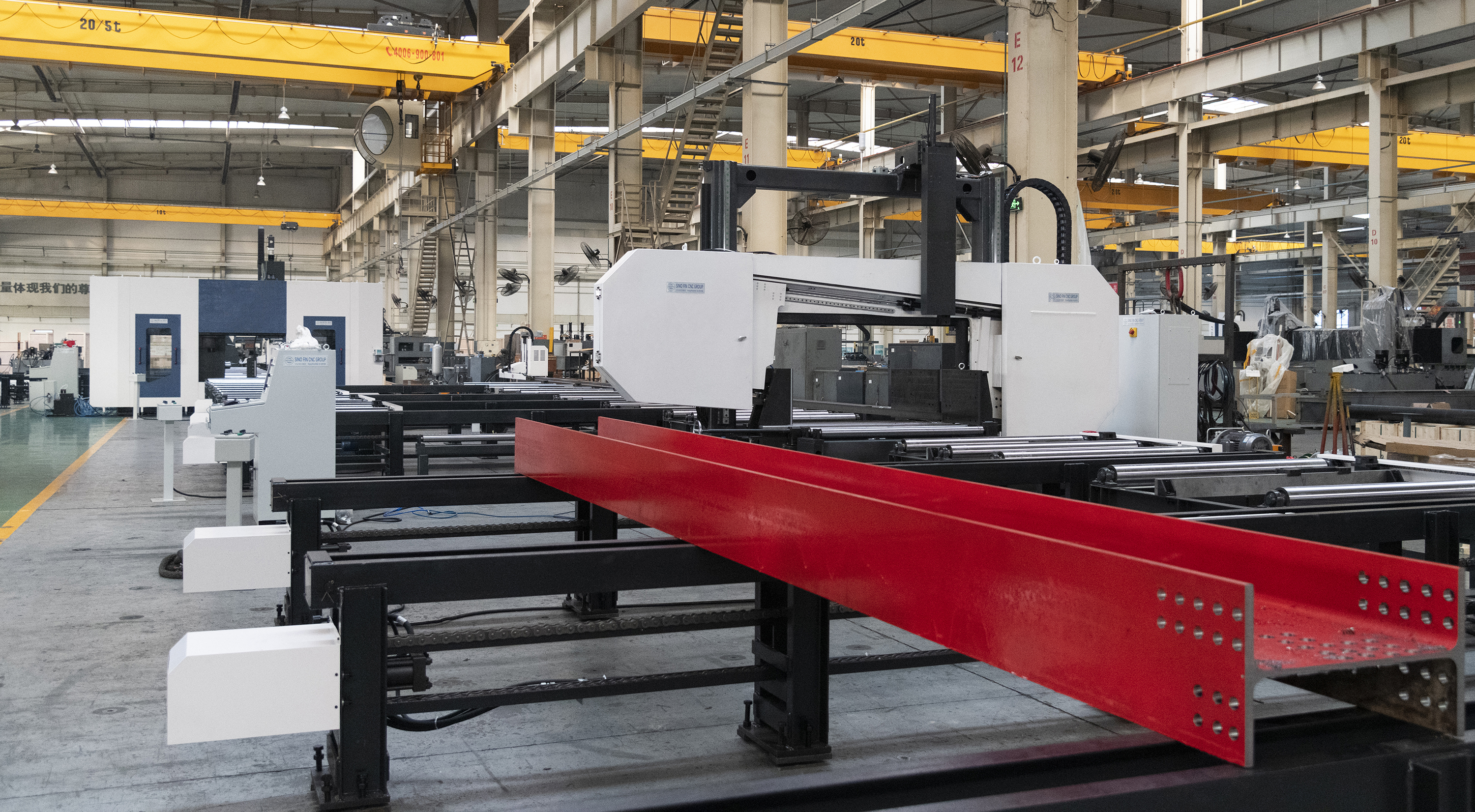

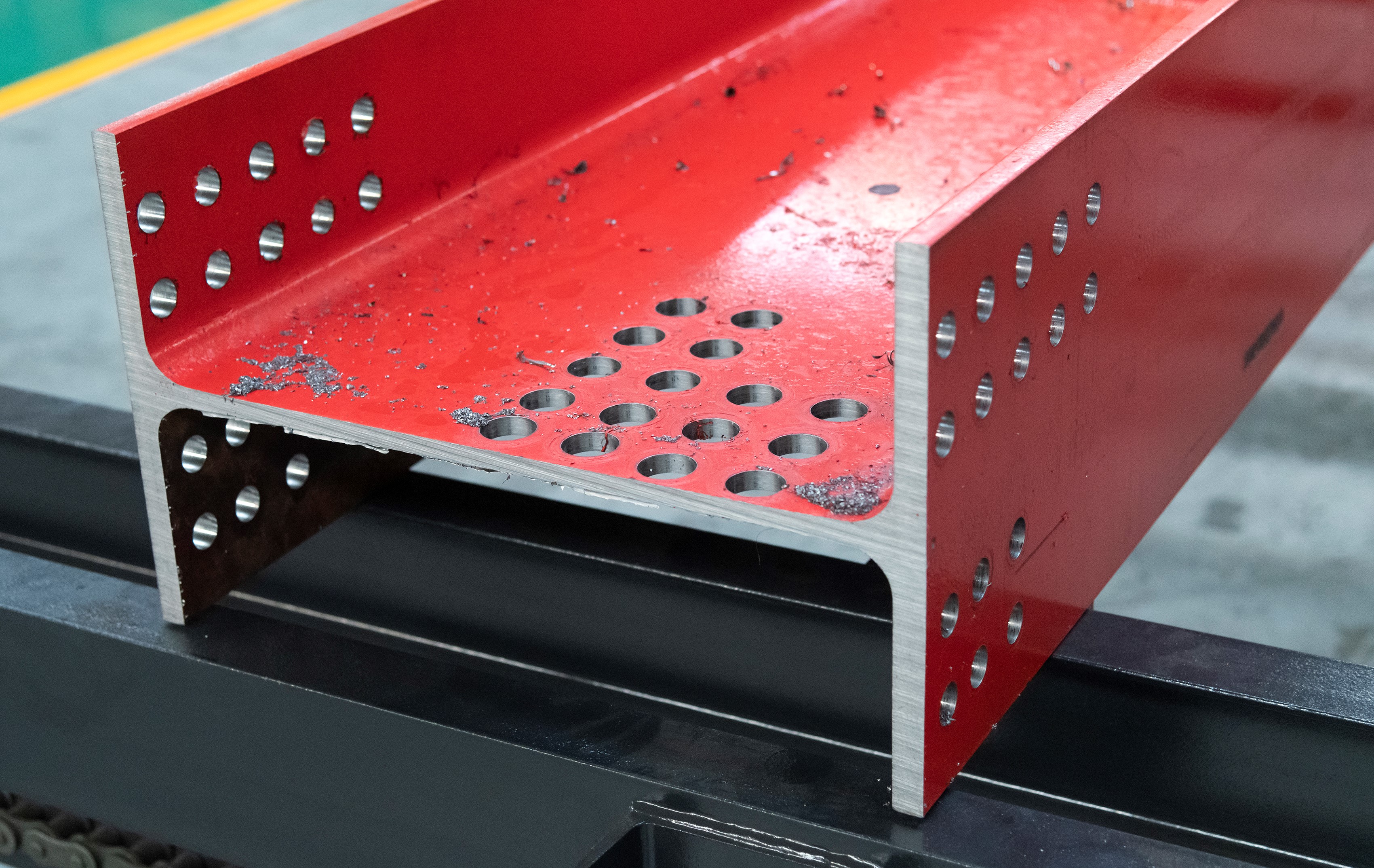

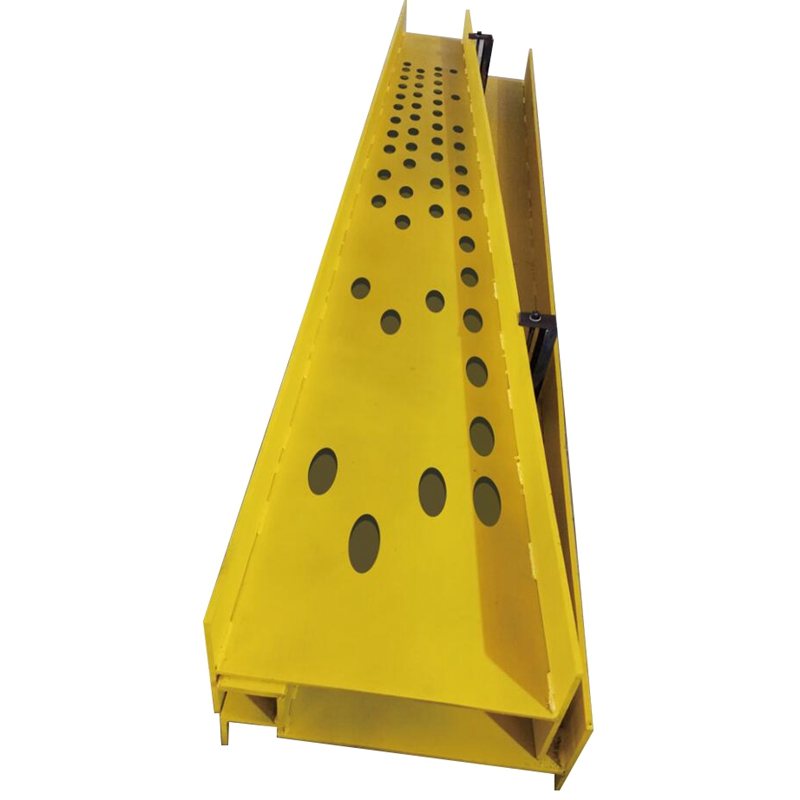

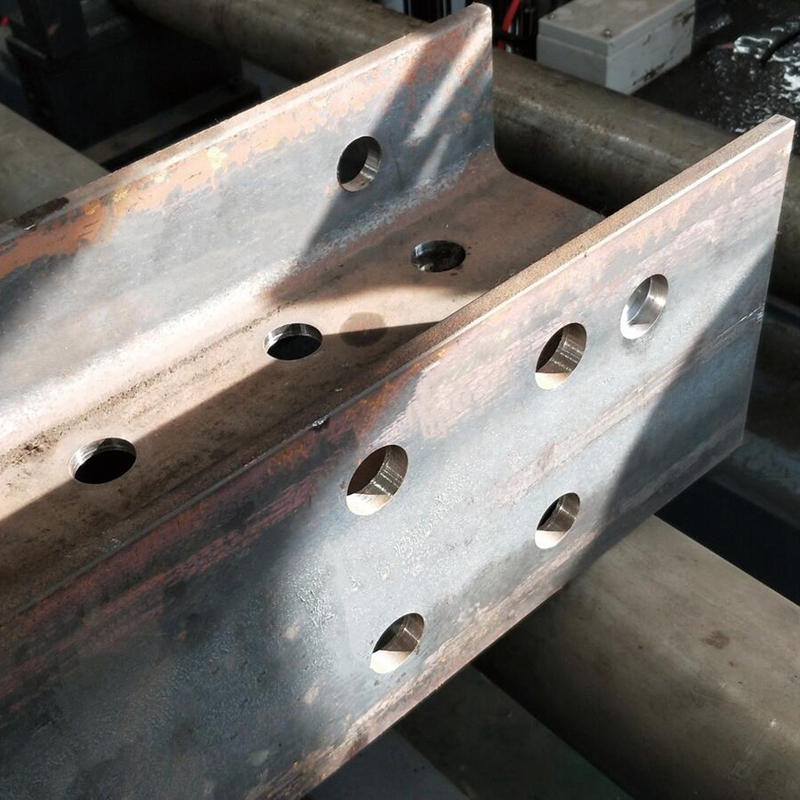

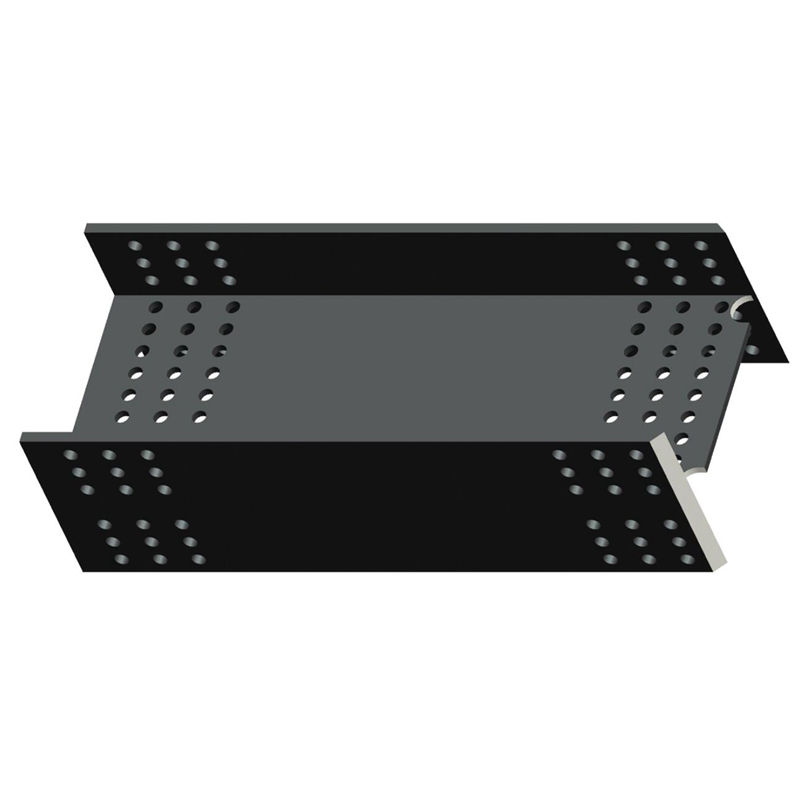

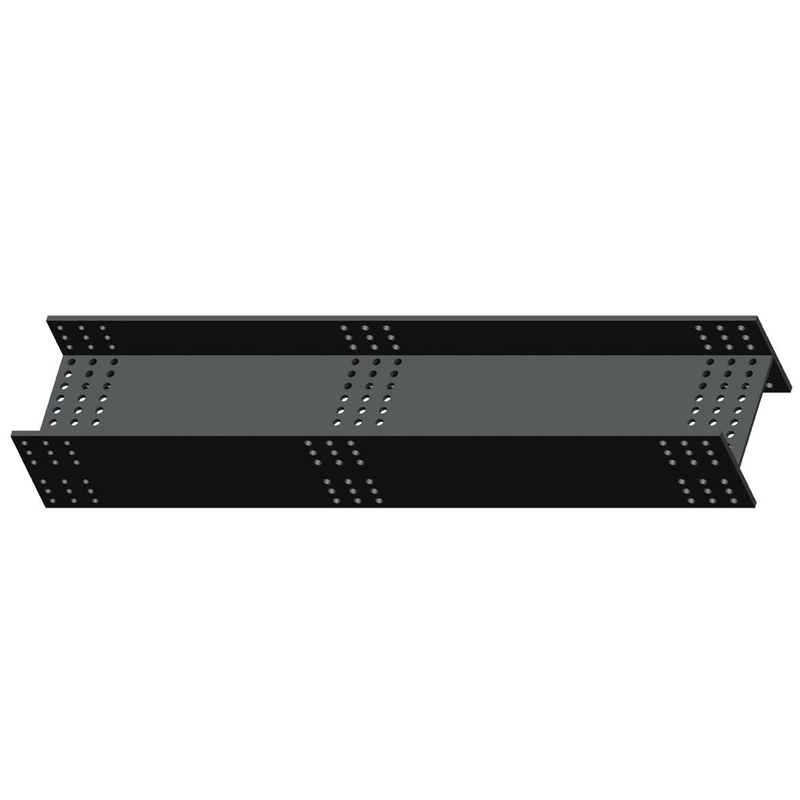

The HBD1250S CNC H Beam Drilling Marking Sawing Line is the most popular machine in bridge building factories & steel structure factories! It is specialized in H beam drilling round holes, marking ID (like letters of alphabet & numbers), sawing straight or turn anlge degree sawing with exact degree & length. Fully automatic, much higher working efficiency for popular sales all over the world.
Availability:
Quantity:

This machine has been exported to many countries like India, Bangladesh, KSA, UAE, Egypt, Morocco, Kenya, South Africa, Vietnam, Indonesia, Malaysia, Chile, Argentina, Brazil, Mexico, Canada, Russia, Ukraine etc.

Moreover, we have the local service India, Vietnam, Indonesia,Russia, Kenya.


Technical Specifications

Model:

HBD1250

Main Functions

Drilling Marking Sawing H Beam

Max. Size of H Beam(mm)

1250x600

Mini. Size of H Beam(mm)

150x75

Max Drilling Hole Dia.(mm)

Φ50

Mini Drilling Hole Dia.(mm)

Φ12

Max Drilling Web/Flange Thickness.(mm)

80

Spindles Numbers

1 Spindle Respectively Top Right & Left

Total 3 Spindles

Max. Feeding Stroke(mm)

Left & Right 140; Top 325

Max.Rotating Speed(rpm)

180 - 650 Step less Speed Adjust

      Max. Feeding Speed(mm/min.)

20-300mm/min

Displacement   of Horizontal Spindle(mm):

520

In Direction of Work Piece Length

20-580

Above Vertical Base Level

Displacement   of Vertical Spindle(mm):

520

In Direction of Work Piece Length

45-1160

Beyond Horizontal Base Level

CNC Axis:

7

One Feeding Finish Drilling All Holes In Direction of Work Piece Length   520mm

Max Length of Raw Angle(mm):

12000

Max. Finished Angle Length(mm):

12000

Feeding Speed of Angle(m/min):

60

Precision(mm):

+/-0.5

Programming Mode:

Input bykeyboard,RS232&USB interface

Hydraulic System:

Air Self Cooling

Working Condition:

-10℃-40°C,3 Phase 415v 50hz

Air Force(Mpa):

1

Total Power (kw):

28

Over Dimension(mm):

35000x3500x3600mm

Weight(kgs):

≈8500 Machine Body
