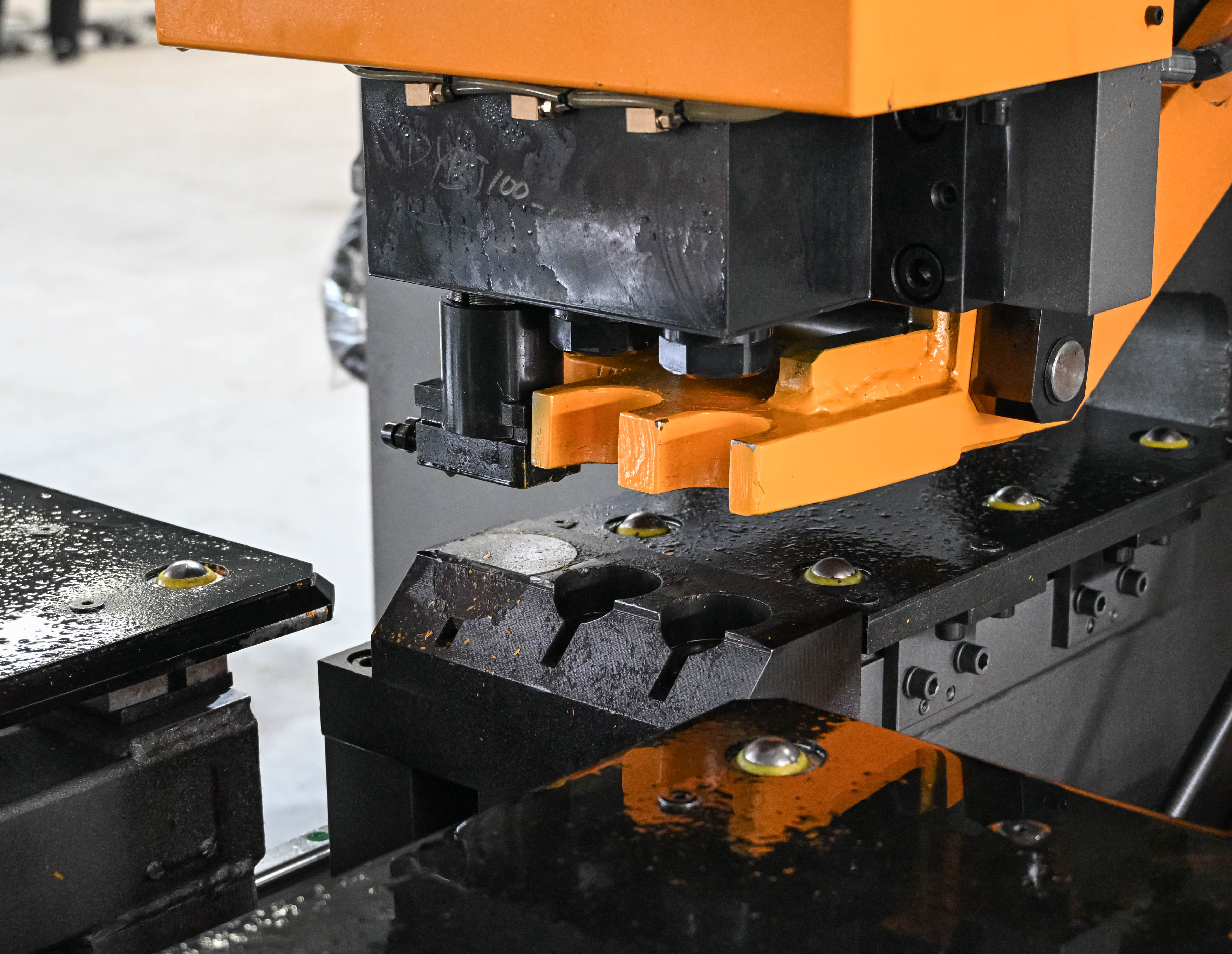

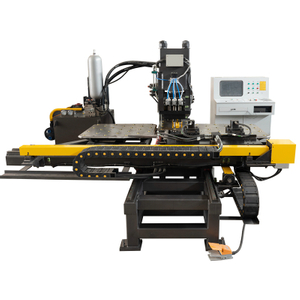

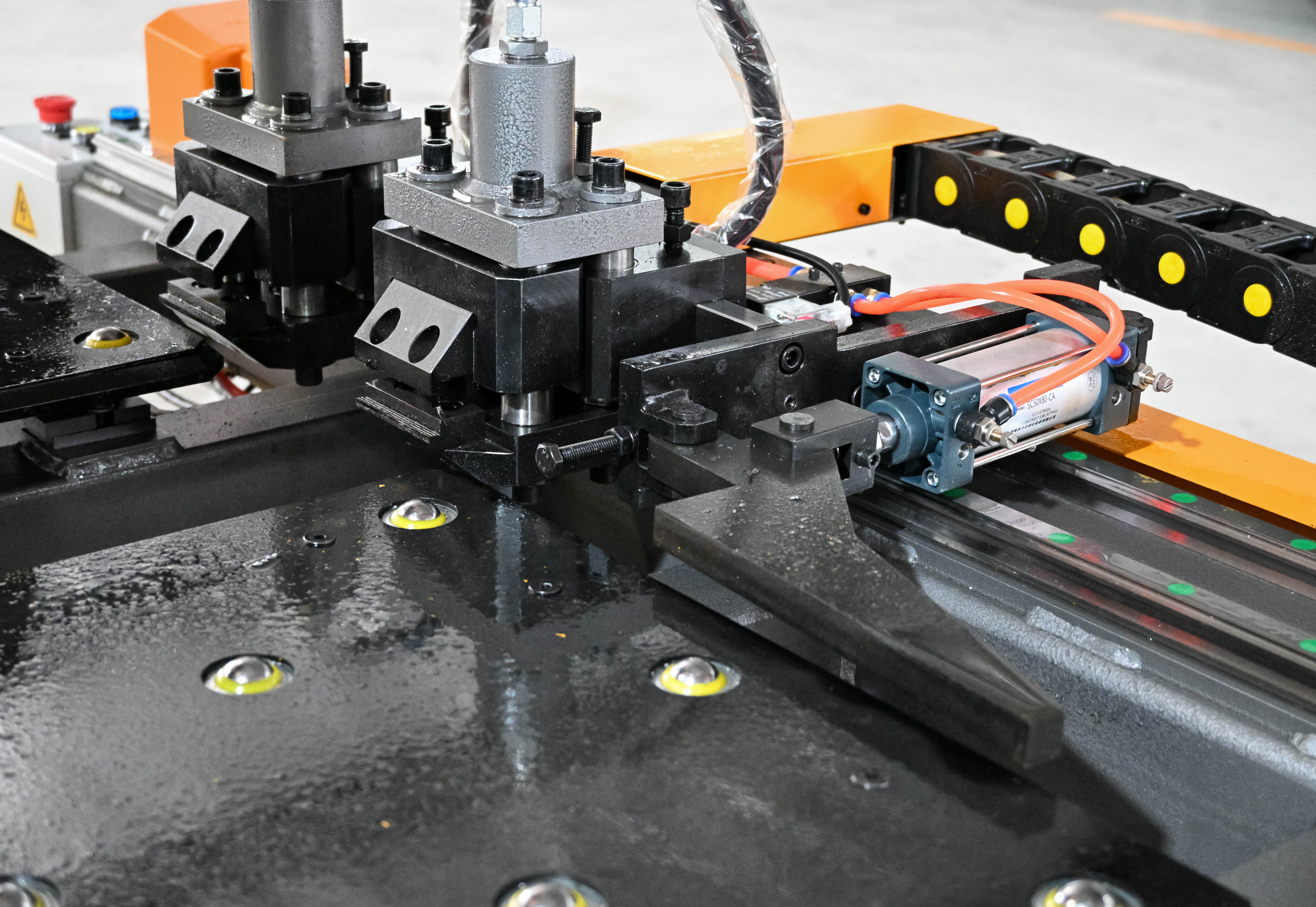

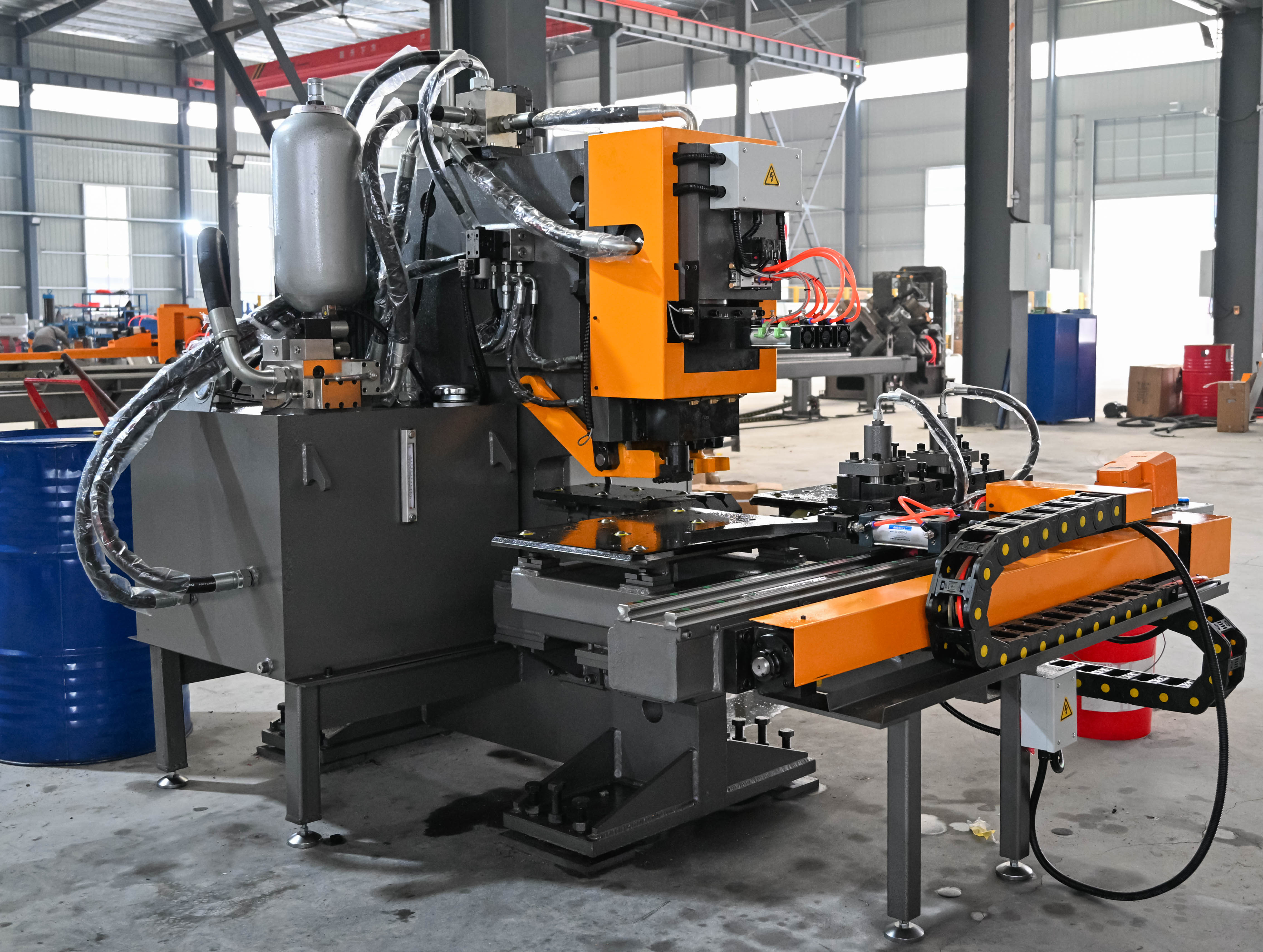

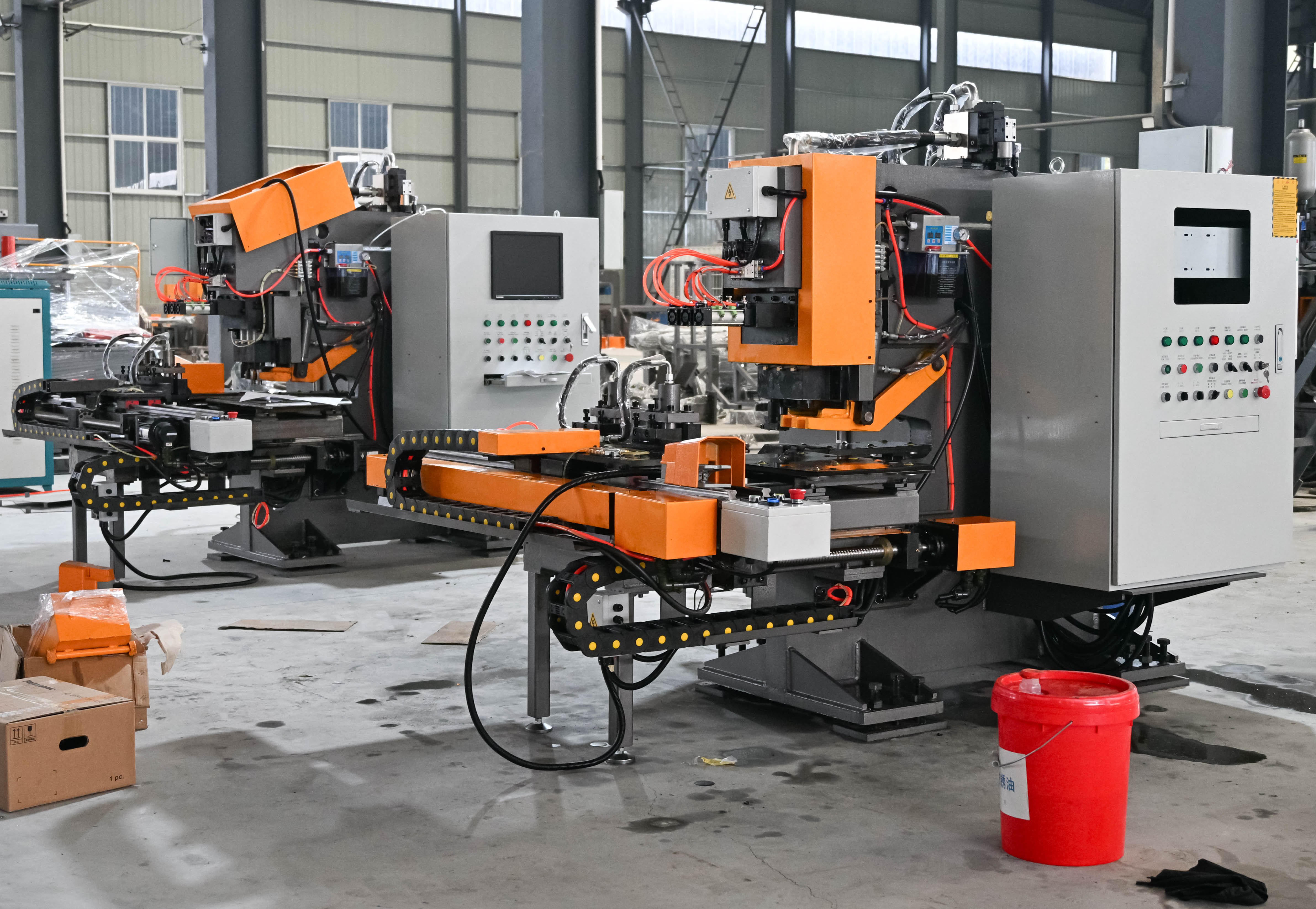

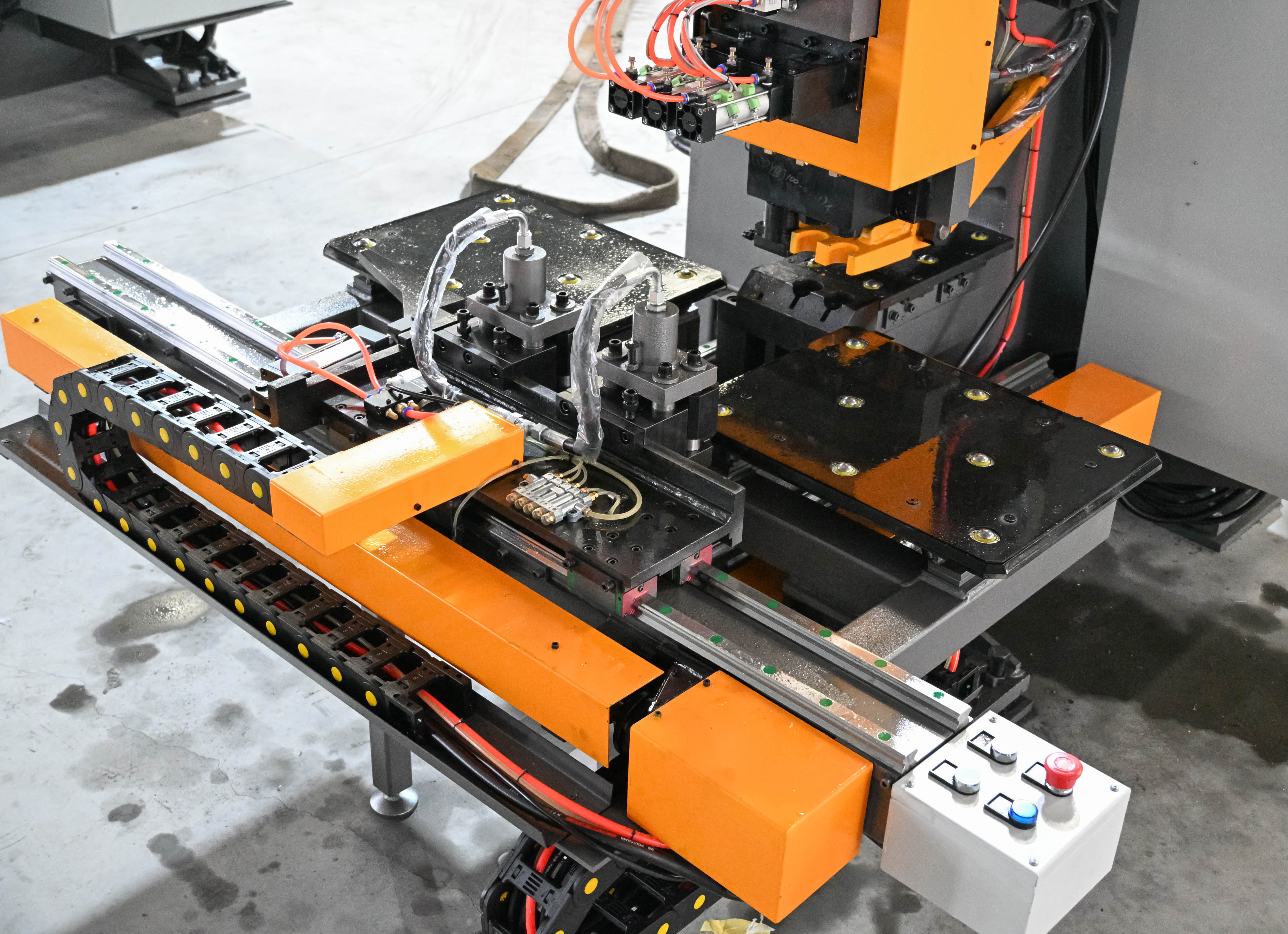

ALL IN ONE STEEL PLATE PUNCHING MACHINE
The machine is the automatic special punching, marking machine for steel plates/connection plates, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
SPECIFICATION:
1 | Max size of work piece: | 800x500mm |
2 | Max punching diameter: | 26mm |
3 | Punching thickness: | 16mm (Q235 steel) |
4 | Punching force: | 800KN |
5 | Marking force | 800 KN |
6 | Dimensions of marking: | 14x10x19mm |
7 | Die-stations: | 3 (2 punching,1marking) |
8 | Programming Mode: | Input by keyboard,R232 or USB interface |
9 | CNC Axis: | Two Axis |
10 | Precision: | +/-0.5mm |
11 | Total Power: | 18kw |
12 | Over Dimension: | 2200x1600x1800mm |
13 | Weight: | 4000kgs or so |
ALL IN ONE STEEL PLATE PUNCHING MACHINE
The machine is the automatic special punching, marking machine for steel plates/connection plates, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
SPECIFICATION:
1 | Max size of work piece: | 800x500mm |
2 | Max punching diameter: | 26mm |
3 | Punching thickness: | 16mm (Q235 steel) |
4 | Punching force: | 800KN |
5 | Marking force | 800 KN |
6 | Dimensions of marking: | 14x10x19mm |
7 | Die-stations: | 3 (2 punching,1marking) |
8 | Programming Mode: | Input by keyboard,R232 or USB interface |
9 | CNC Axis: | Two Axis |
10 | Precision: | +/-0.5mm |
11 | Total Power: | 18kw |
12 | Over Dimension: | 2200x1600x1800mm |
13 | Weight: | 4000kgs or so |
