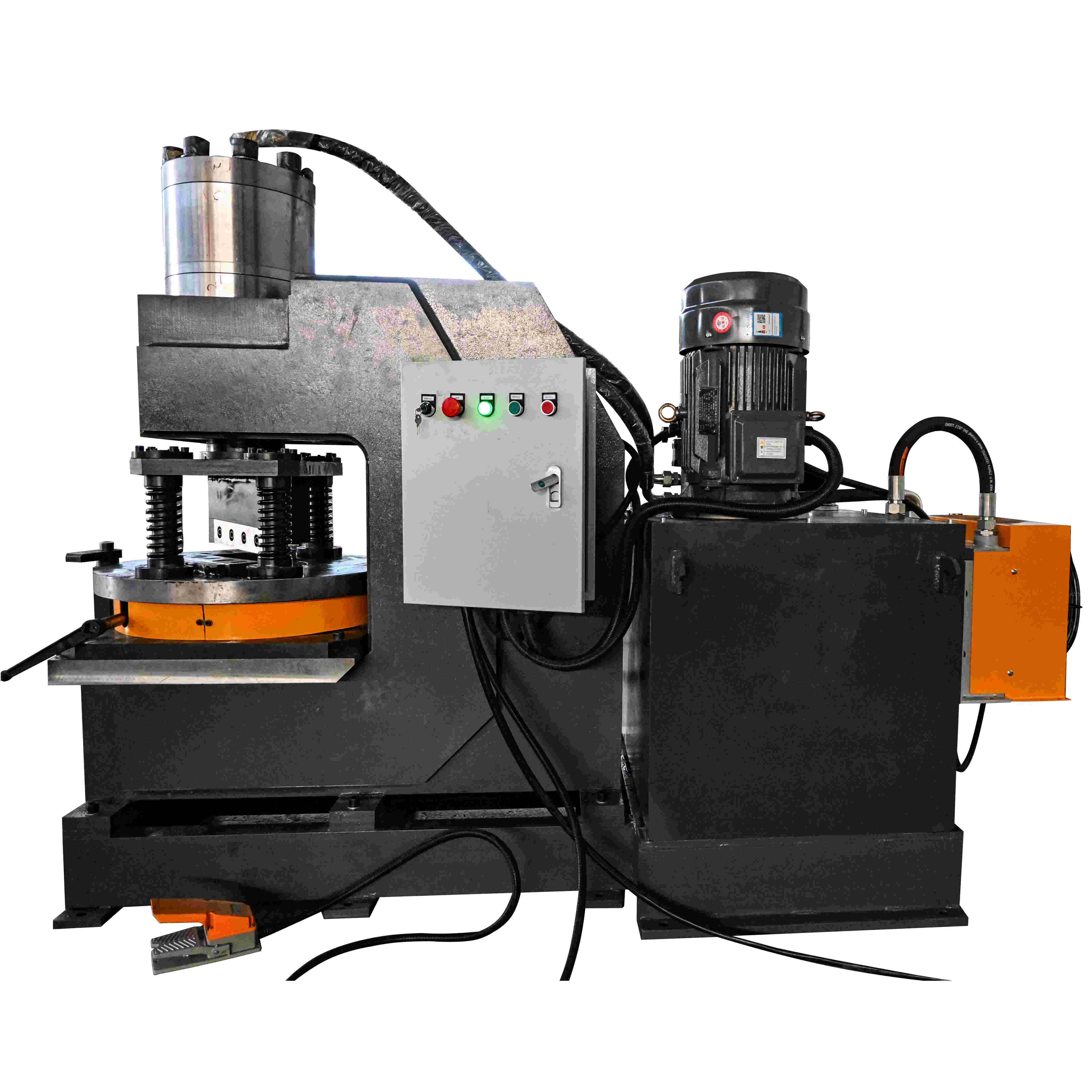

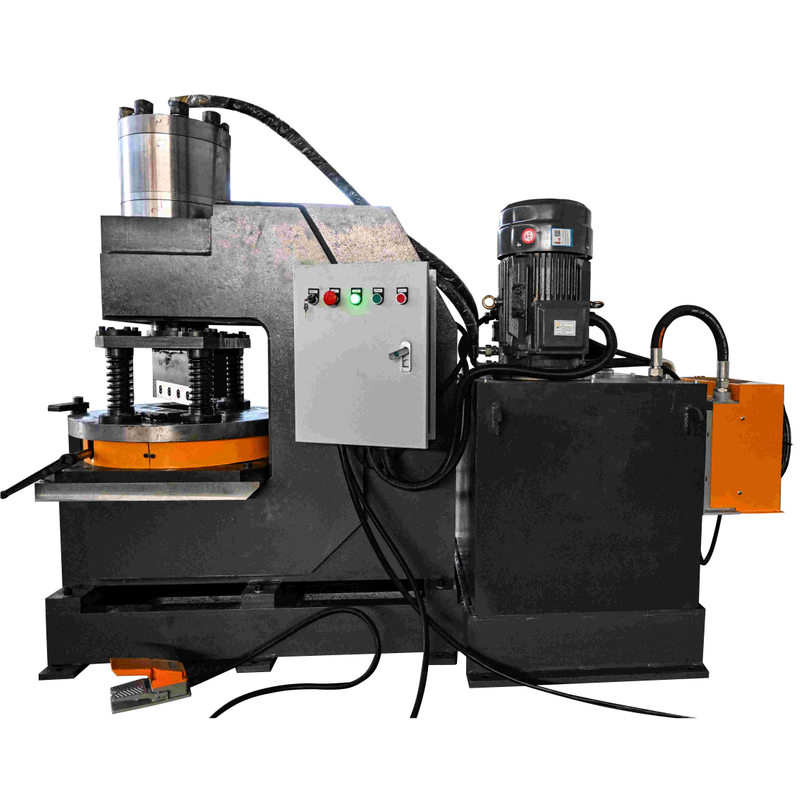

This product is composed of a host, a mold, and a hydraulic station and is equipped with an electrical system to realize angle cutting.
Specification:
Machine model | AN16 |
Machine function | Used for angle notching |
Processing angle steel size range (mm) | L40×40×3~L160×160×16 |
nominal pressure(kn) | 1000 |
cylinder stroke(mm) | 50 |
maximum cutting ability (Material Q345 510N/mm²) | L160×160×16 |
maximum cutting ability (Material Q420 560N/mm²) | L160×160×12 |
shearing times(min-1) | 20~25 |
angle cutting die rotation angle(°) | 360(manual) |
This product is composed of a host, a mold, and a hydraulic station and is equipped with an electrical system to realize angle cutting.
Specification:
Machine model | AN16 |
Machine function | Used for angle notching |
Processing angle steel size range (mm) | L40×40×3~L160×160×16 |
nominal pressure(kn) | 1000 |
cylinder stroke(mm) | 50 |
maximum cutting ability (Material Q345 510N/mm²) | L160×160×16 |
maximum cutting ability (Material Q420 560N/mm²) | L160×160×12 |
shearing times(min-1) | 20~25 |
angle cutting die rotation angle(°) | 360(manual) |
