HBDM1250

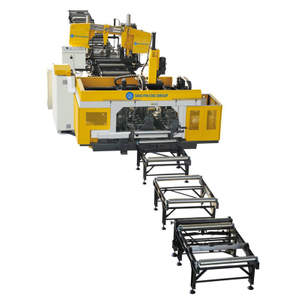

This machine line mainly works for drilling hole and cutting saw to length for H Beam /Channe, it’s good for mass production and it’s flexible for working multiple material types.
It has been exported to many countries like India, Bangladesh, KSA, UAE, Egypt, Morocco, Kenya, South Africa, Vietnam, Indonesia, Malaysia, Chile, Argentina, Brazil, Mexico, Canada, Russia, Ukraine etc.
Moreover, we have the local service India, Vietnam, Indonesia,Russia, Kenya.
Technical Specifications
Model: | HBDM1250 |
Main Functions | Drilling Marking Sawing H Beam |
Web Width Min/Max(mm) | 150-1250 |
Flange Height Lin/Max(mm) | 75-600 |
Max Drilling Hole Dia.(mm) | Φ40 |
Max Drilling Web/Flange Thickness (mm) | 80 |
Drilling Spindles Numbers | 3 |
Max. Feeding Stroke(mm) | Left & Right 140; Top 325 |
Max.Rotating Speed(rpm) | 3000 rpm |
Max. Feeding Speed(mm/min.) | 20-300mm/min |
Displacement of Horizontal Spindle(mm): | 520 In Direction of Work Piece Length |
20-580 Above Vertical Base Level | |
Displacement of Vertical Spindle(mm): | 520 In Direction of Work Piece Length |
45-1160 Beyond Horizontal Base Level | |
CNC Axis: | 10 One Feeding Finish Drilling All Holes In Direction of Work Piece Length 520mm |
Max Length of Raw Angle(mm): | 12000 |
Max. Finished Angle Length(mm): | 12000 |
Feeding Speed of Angle(m/min): | 60 |
Precision(mm): | +/-0.5 |
Programming Mode: | Input bykeyboard,RS232&USB interface |
Hydraulic System: | Air Self Cooling |
Working Condition: | -10℃-40°C,3 Phase 415v 50hz |
Spindle Power (kw): | 15 |
Over Dimension(mm): | 35000x3500x3600mm |
Weight(kgs): | ≈8500 Machine Body |
This machine line mainly works for drilling hole and cutting saw to length for H Beam /Channe, it’s good for mass production and it’s flexible for working multiple material types.
It has been exported to many countries like India, Bangladesh, KSA, UAE, Egypt, Morocco, Kenya, South Africa, Vietnam, Indonesia, Malaysia, Chile, Argentina, Brazil, Mexico, Canada, Russia, Ukraine etc.
Moreover, we have the local service India, Vietnam, Indonesia,Russia, Kenya.
Technical Specifications
Model: | HBDM1250 |
Main Functions | Drilling Marking Sawing H Beam |
Web Width Min/Max(mm) | 150-1250 |
Flange Height Lin/Max(mm) | 75-600 |
Max Drilling Hole Dia.(mm) | Φ40 |
Max Drilling Web/Flange Thickness (mm) | 80 |
Drilling Spindles Numbers | 3 |
Max. Feeding Stroke(mm) | Left & Right 140; Top 325 |
Max.Rotating Speed(rpm) | 3000 rpm |
Max. Feeding Speed(mm/min.) | 20-300mm/min |
Displacement of Horizontal Spindle(mm): | 520 In Direction of Work Piece Length |
20-580 Above Vertical Base Level | |
Displacement of Vertical Spindle(mm): | 520 In Direction of Work Piece Length |
45-1160 Beyond Horizontal Base Level | |
CNC Axis: | 10 One Feeding Finish Drilling All Holes In Direction of Work Piece Length 520mm |
Max Length of Raw Angle(mm): | 12000 |
Max. Finished Angle Length(mm): | 12000 |
Feeding Speed of Angle(m/min): | 60 |
Precision(mm): | +/-0.5 |
Programming Mode: | Input bykeyboard,RS232&USB interface |
Hydraulic System: | Air Self Cooling |
Working Condition: | -10℃-40°C,3 Phase 415v 50hz |
Spindle Power (kw): | 15 |
Over Dimension(mm): | 35000x3500x3600mm |
Weight(kgs): | ≈8500 Machine Body |
