This machine has been exported to many countries like India, Bangladesh, KSA, UAE, Egypt, Morocco, Kenya, South Africa, Vietnam, Indonesia, Malaysia, Chile, Argentina, Brazil, Mexico, Canada, Russia, Ukraine etc.
Moreover, we have the local service India, Vietnam, Indonesia,Russia, Kenya.
Technical Specifications
Model: | HBS1250 |
Main Functions | Straight/Turn Angle Sawing H Beam |
Max. Size of H Beam(mm) | 1250x600 |
Max. Size of Round Beam(mm) | Φ660 |
Max. Size of Square Beam(mm) | 630x630 |
Band Saw Blade Size(mm) | 8300x54x1.6 |
Saw Blade Linear Speed(mm/min) | 20-80 |
Total Height(mm) | 800 |

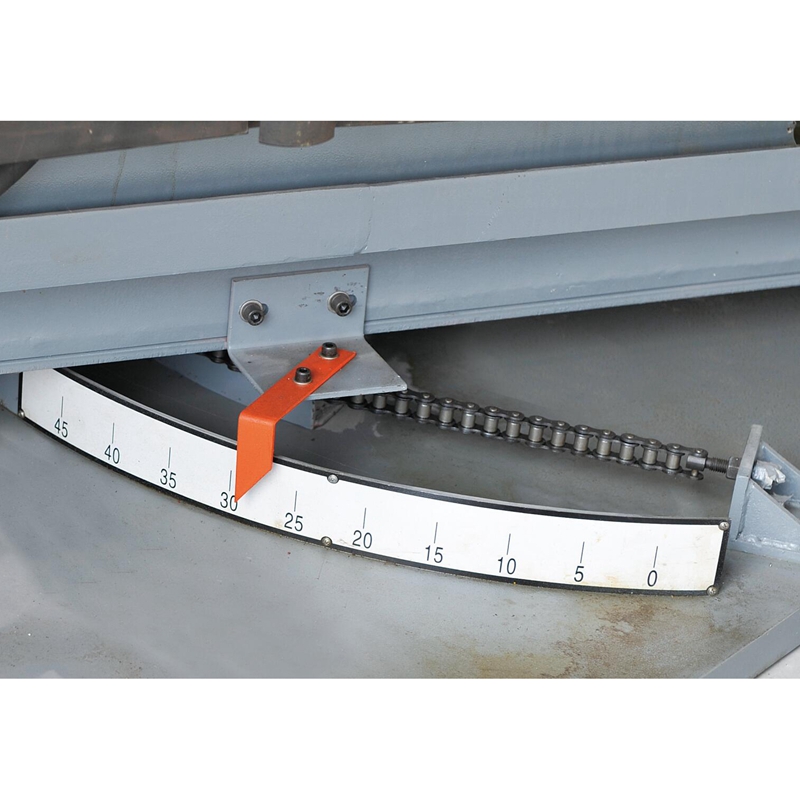

Rotation Angle Degree(°） | 0°~45° |
Host Motor Power(kw) | 11 |
Motor Power for Cooling Pump(kw) | 0.12 |
Main Clamp for Hydraulic Flowing | 160ml/r |
Front Clamp for Hydraulic Flowing | 160ml/r |
Motor Power for Rotation Table(kw) | 0.04 |
Over Dimension(mm): | 4200x2600x2800mm |
Weight(kgs): | ≈6800 Machine Body |
This machine has been exported to many countries like India, Bangladesh, KSA, UAE, Egypt, Morocco, Kenya, South Africa, Vietnam, Indonesia, Malaysia, Chile, Argentina, Brazil, Mexico, Canada, Russia, Ukraine etc.
Moreover, we have the local service India, Vietnam, Indonesia,Russia, Kenya.
Technical Specifications
Model: | HBS1250 |
Main Functions | Straight/Turn Angle Sawing H Beam |
Max. Size of H Beam(mm) | 1250x600 |
Max. Size of Round Beam(mm) | Φ660 |
Max. Size of Square Beam(mm) | 630x630 |
Band Saw Blade Size(mm) | 8300x54x1.6 |
Saw Blade Linear Speed(mm/min) | 20-80 |
Total Height(mm) | 800 |
Rotation Angle Degree(°） | 0°~45° |
Host Motor Power(kw) | 11 |
Motor Power for Cooling Pump(kw) | 0.12 |
Main Clamp for Hydraulic Flowing | 160ml/r |
Front Clamp for Hydraulic Flowing | 160ml/r |
Motor Power for Rotation Table(kw) | 0.04 |
Over Dimension(mm): | 4200x2600x2800mm |
Weight(kgs): | ≈6800 Machine Body |
