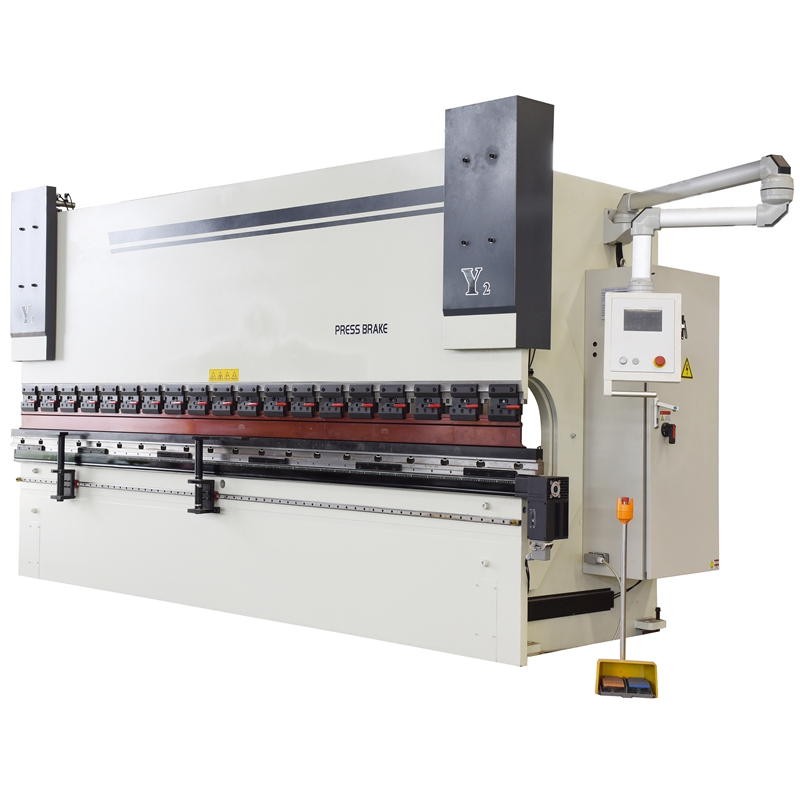

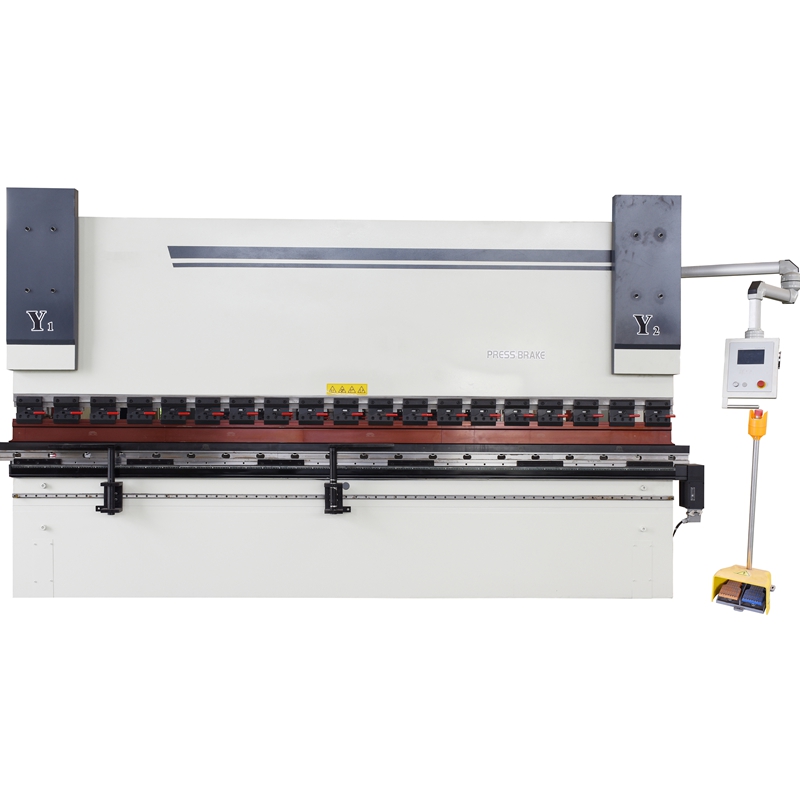

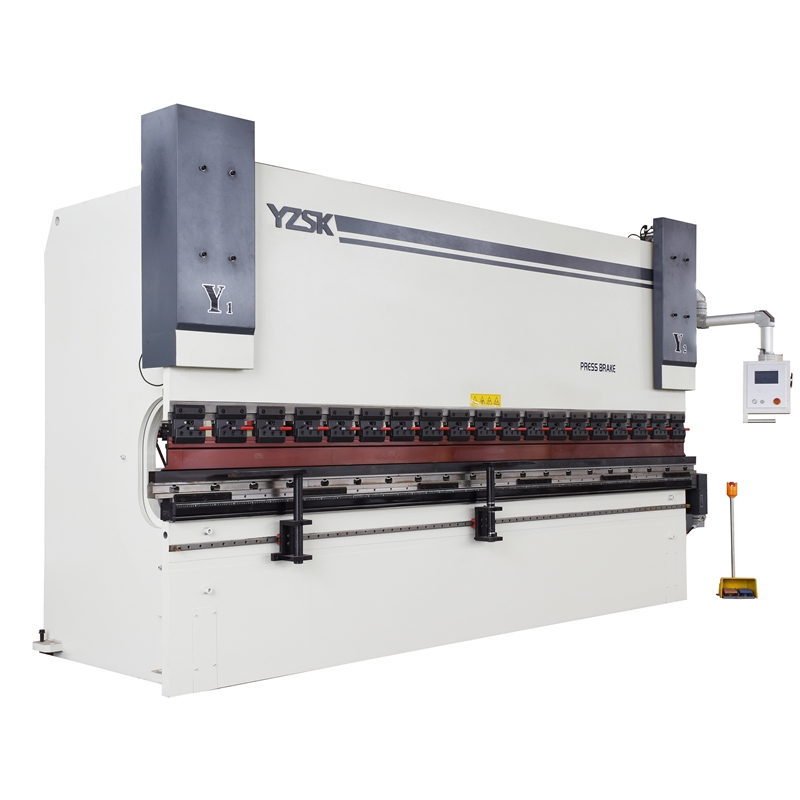

CNC Press brake

CNC press brake is used to bend a cold metal sheet into a work piece of various geometric cross-section shapes, designed for cold rolling sheet metal processing. And widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries

Availability:

Quantity:



Inquire Add to Basket

Product Description

TECHNICAL PARAMETER:

TYPE	NORMAL FORCE(KN)	WORKTABLE LENGTH(mm)	POLES DISTANCE(mm)	THROAT DEPTH(mm)	RAM STRICKS(mm)	MAX OPEN(mm)	POWER(KW)	DIMENSION(mm)
50T/1300	500	1300	1120	250	150	460	5.5	1800x1500x2300
70T/1600	700	1600	1300	300	150	460	5.5	2300x1600x2500
70T/2500	700	2500	2050	300	150	460	5.5	3100x1600x2500
B0T/2500	800	2500	2050	300	150	460	7.5	3100x1600x2600
110T/2500	1100	2500	2050	400	200	490/470	11	3100x1800x2600
110T/3200	1100	3200	2700	400	200	490/470	11	3800x1800x2600
110T/4000	1100	4000	3100/3600	400	200	490/470	11	4600x1800x2600
135T/3200	1350	3200	2700	400	200	490/470	11	3800x1800x2700
135T/4000	1350	4000	3100/3600	400	200	490/470	11	4600x1800x2700
170T/3200	1700	3200	2700	450	200	490/470	15	3800x2000x2800
170T/4000	1700	4000	3100/3600	450	200	4901470	15	4600x2000x2800
220T/3200	2200	3200	2600	450	200	490/470	18.5	3800x2200x2850
220T/4000	2200	4000	3100	450	200	490/470	18.5	4600x2200x2850
250T/3200	2500	3200	2600	450	250	540	22	3800x2000x2900
250T/4000	2500	4000	3100	450	250	540	22	4800x2100x3100
250T/5000	2500	5000	3800	450	250	540	22	5600x2150x3150
250T/6000	2500	6000	4800	450	250	540	22	6600x2150x3150
300T/3200	3000	3200	2600	500	250	570	22	3800x2250x3200
300T/4000	3000	4000	3100	500	250	570	22	4600X2500x3400
300T/5000	3000	5000	3800	500	250	570	22	5600X2500x3400
300T/6000	3000	6000	4800	500	250	570	22	6600X2500x3400
