Steel Structure Movable Tower Crane for Tower

Availability:
Quantity:
Inquire Add to Basket

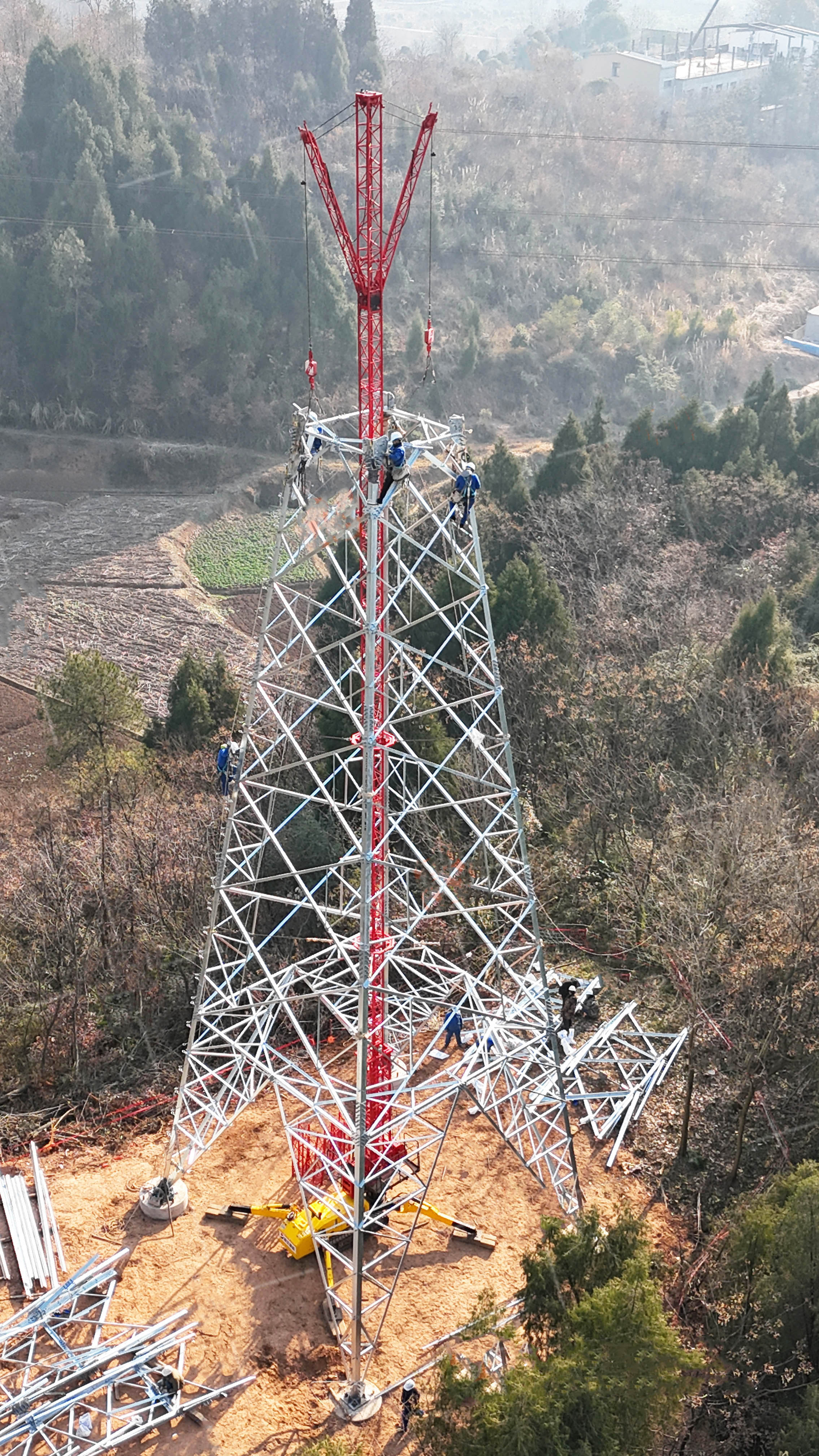

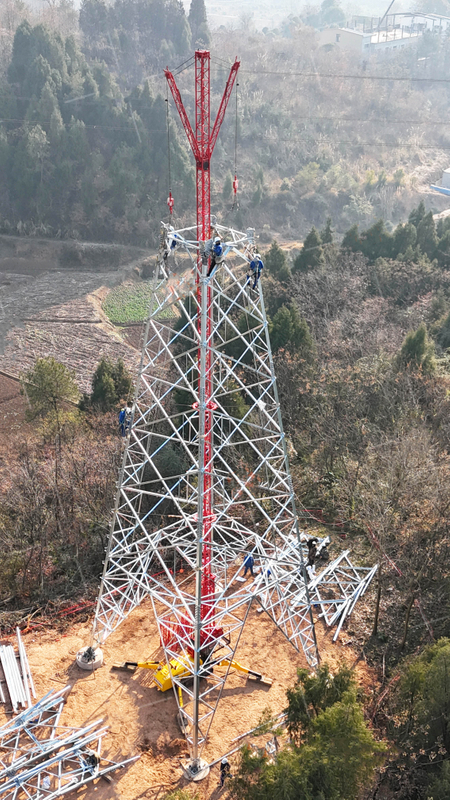

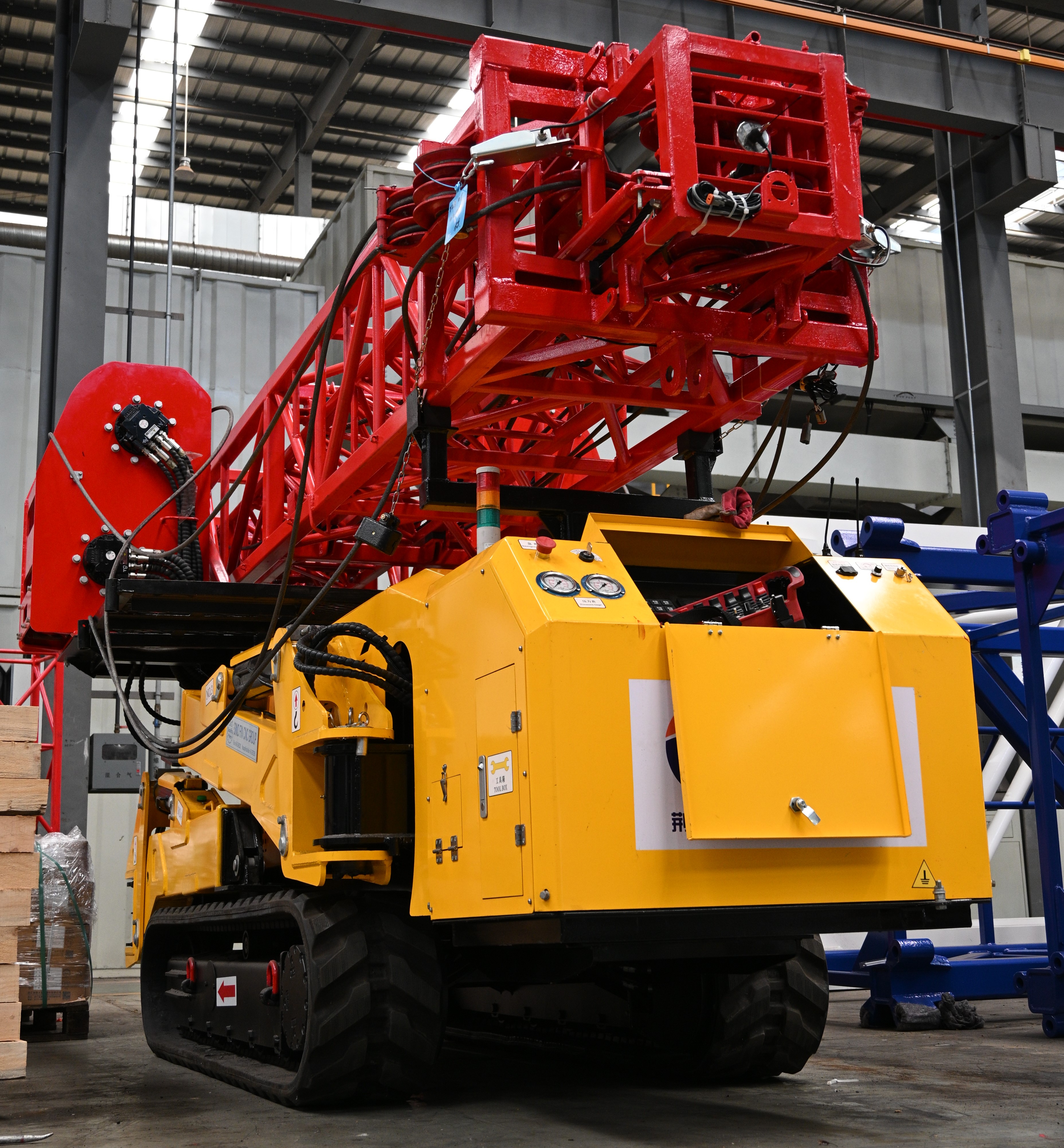

The SFD2 crawler-mounted lightweight tower erection device is an innovative solution for the assembly and construction of 110-220 kV transmission towers.

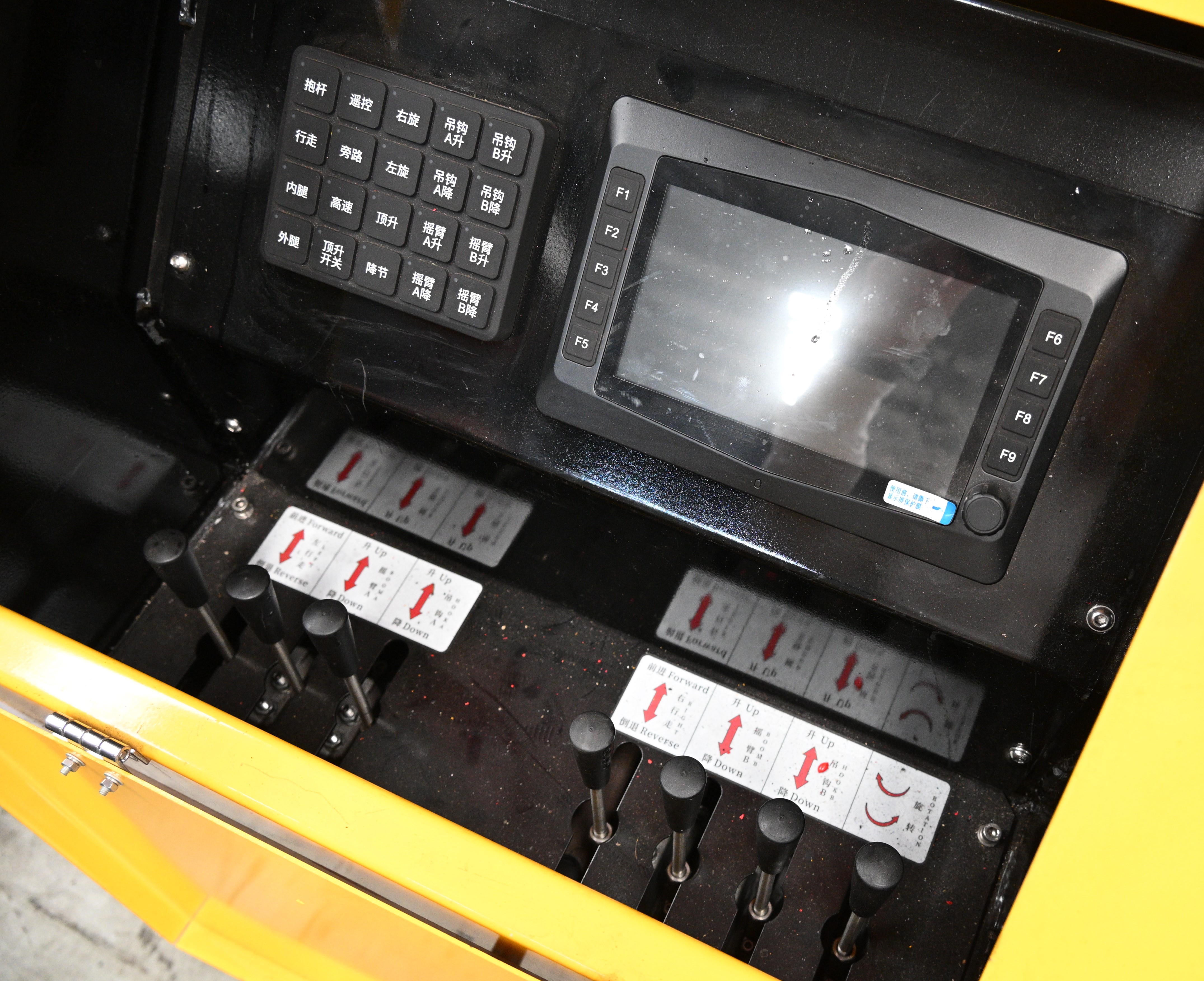

It integrates modular equipment, power system,operating procedures and intelligent control system. It completely replaces the traditional suspended mast tower erection,making tower erection operations safer, smarter, more efficient and eco-friendly.


Max hook height (m)

50

Max work height (m)

54.7

Max work raidus (m)4
Standard section size (m)0.4x0.4
Package dimension (m)4.18x1.28x2.12
Rated load 5.98 t/m
Max unbalanced monment1.495 t/m

Maximum lifting weight (under hook)

l.495t
Height (m)9
Fold dimension (m)0.4x0.6
hook speed (m/min)0-15
Luffing speed (m/min)0-7.5
Rotation Angle ±170°
Rotation speed (r/min)0-0.3
Lifting speed (m/min)0.5
Walk speed (km/h)0-2.2
Grade ability20°
Extended dimission (m)5x5.3
Weight (ton)5.3


Voltage Level (KV)
110-220
Tower root opening (m)3.1-7.0
Minimum closing size (m)0.6x0.6
Tower Calling Height (m)36

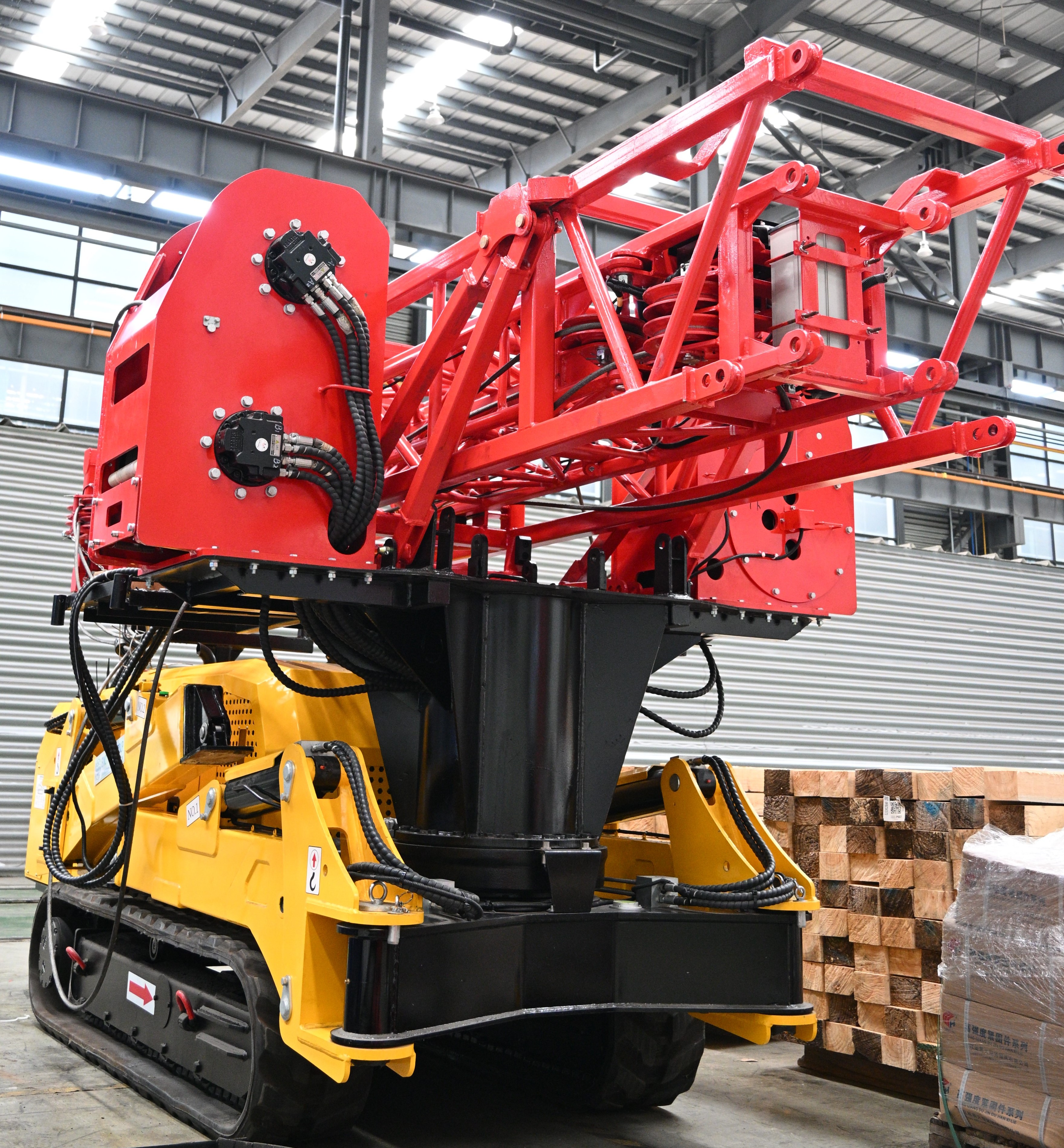

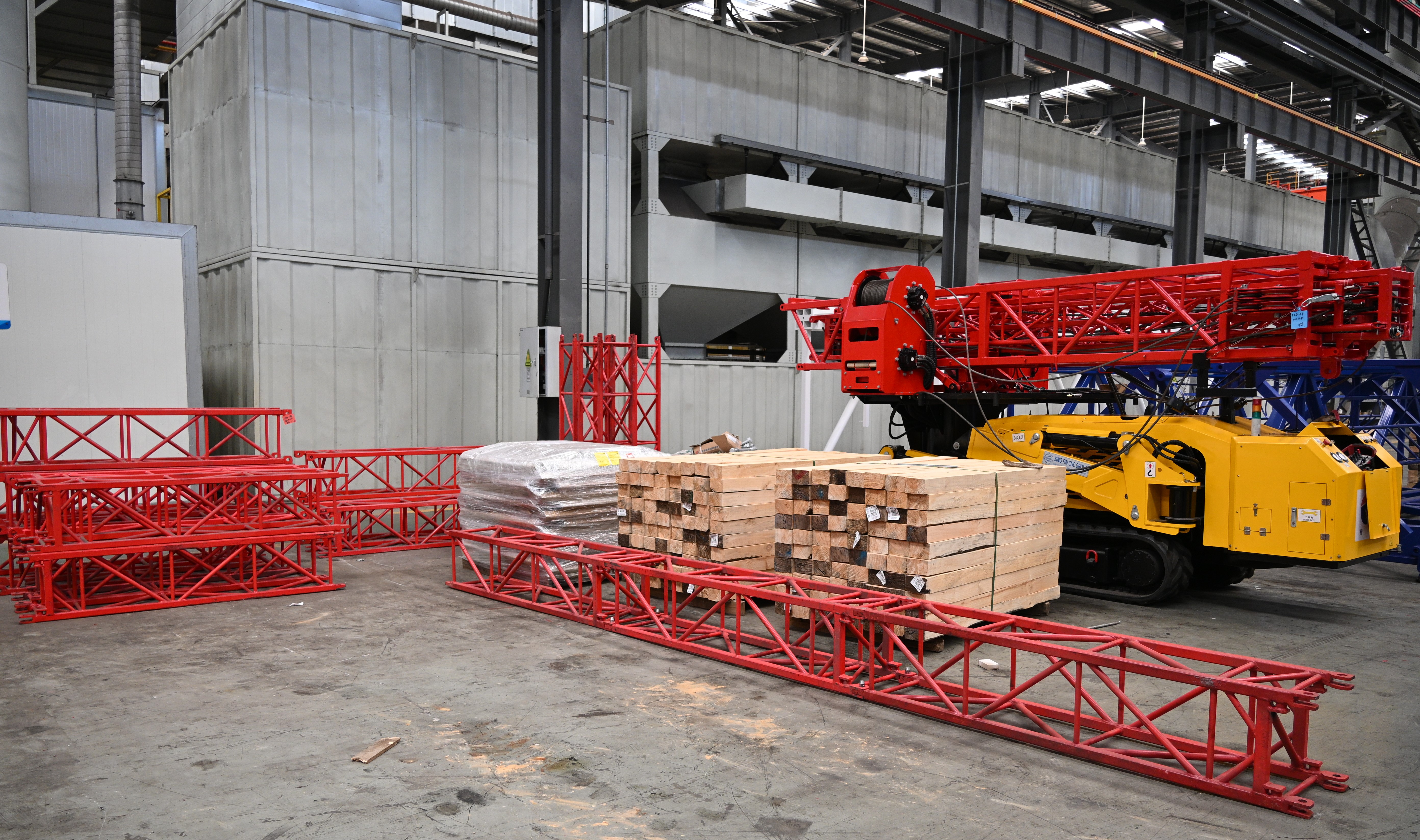

components

1 Top  of  the  tower
2 Boom
3 Hook
4 Tower body
5 Rack
6 Lifting system
7 Rotation
8 Crawler crane
9 Waist ring
