This machine has been exported to many countries like India, Bangladesh, KSA, UAE, Egypt, Morocco, Kenya, South Africa, Vietnam, Indonesia, Malaysia, Chile, Argentina, Brazil, Mexico, Canada, Russia, Ukraine etc.
Moreover, we have the local service India, Vietnam, Indonesia,Russia, Kenya.
Technical Specifications

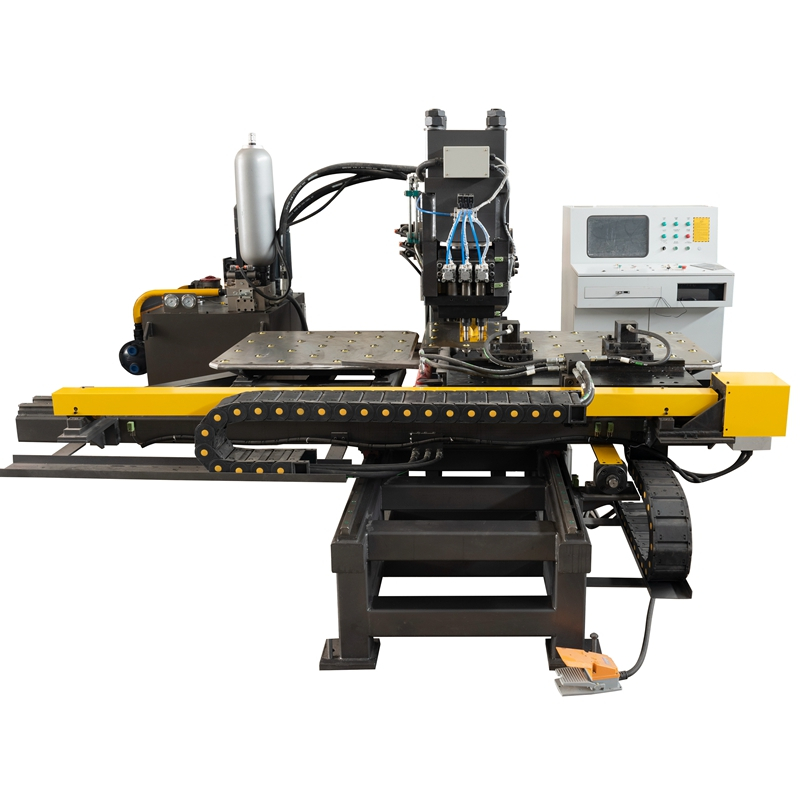

Model: | PP100 |

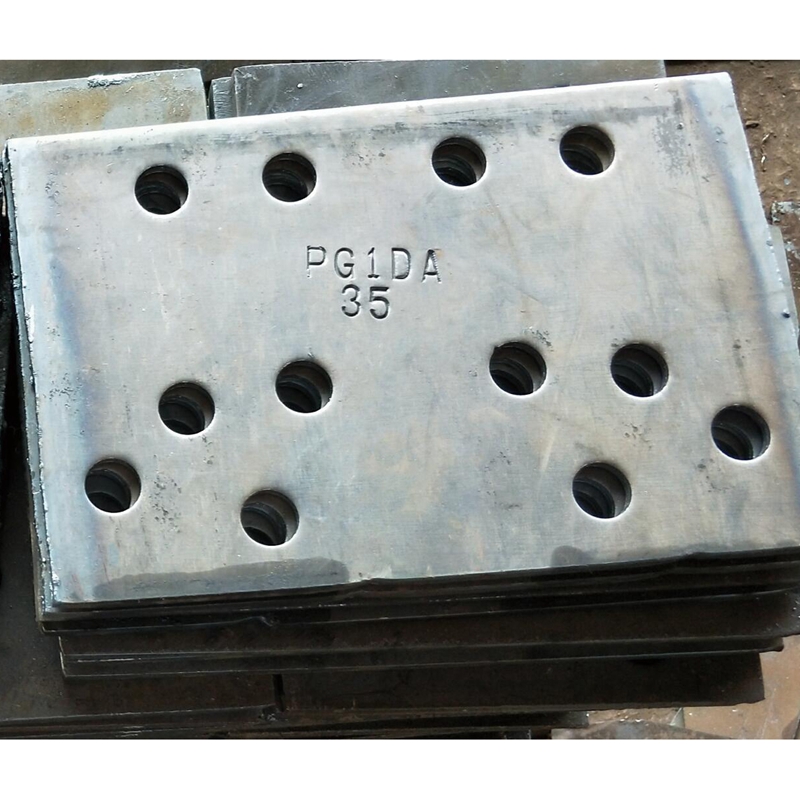

Main Functions | Punching Hole & Marking Steel Plate |
Max. Size of Steel Plate(mm) | 1500x800x25 |
Max Punching Dia.*Thickness (mm) | Φ26x25 |
Max. Punching Force(kn) | 1000 |
Max.Marking Force(kn) | 800 |
Size of Marking(mm): | 14x10x19 |
Die-stations: | 2 Punchers 1 Mark/ 3 Punchers |

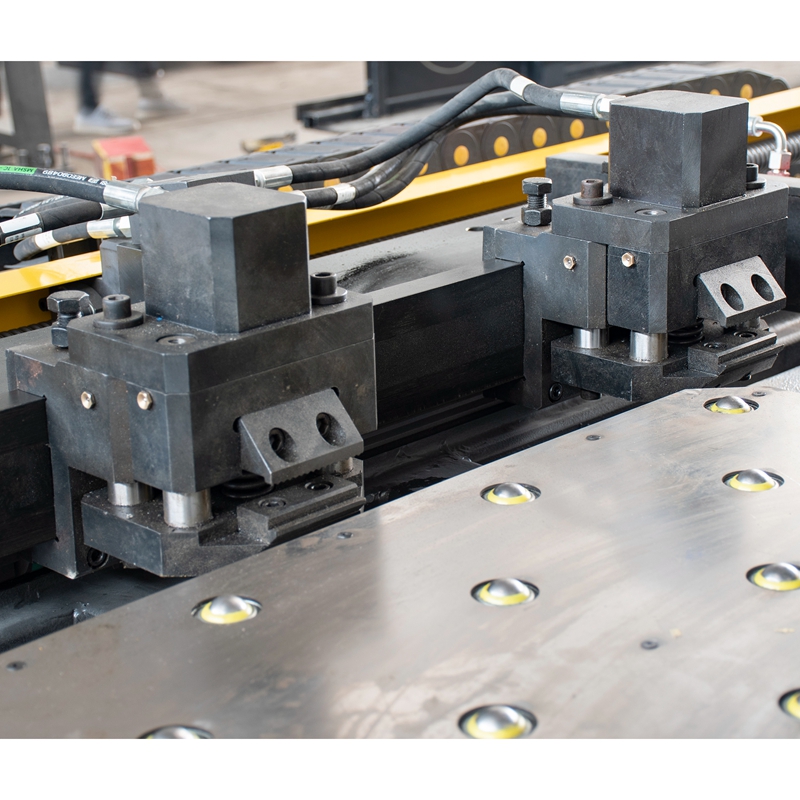

Auto Clamps Number: | 2 |
Quantity of Punching Holes: | Arbitrariness |
Quantity of Marking Times: | Arbitrariness |
CNC Axis: | 2 |
Precision(mm): | +/-0.5 |
Programming Mode: | keyboard,RS232&USB interface |
Hydraulic System: | Water/Air Self Cooling |
Working Condition: | -10℃-40°C 3 Phase 415/380v 50/60hz |
Air Force(Mpa): | 1 |
Total Power: | 22kw |
Over Dimension: | 3200x3000x2600mm |
Weight: | 6000KGS |
This machine has been exported to many countries like India, Bangladesh, KSA, UAE, Egypt, Morocco, Kenya, South Africa, Vietnam, Indonesia, Malaysia, Chile, Argentina, Brazil, Mexico, Canada, Russia, Ukraine etc.
Moreover, we have the local service India, Vietnam, Indonesia,Russia, Kenya.
Technical Specifications
Model: | PP100 |
Main Functions | Punching Hole & Marking Steel Plate |
Max. Size of Steel Plate(mm) | 1500x800x25 |
Max Punching Dia.*Thickness (mm) | Φ26x25 |
Max. Punching Force(kn) | 1000 |
Max.Marking Force(kn) | 800 |
Size of Marking(mm): | 14x10x19 |
Die-stations: | 2 Punchers 1 Mark/ 3 Punchers |
Auto Clamps Number: | 2 |
Quantity of Punching Holes: | Arbitrariness |
Quantity of Marking Times: | Arbitrariness |
CNC Axis: | 2 |
Precision(mm): | +/-0.5 |
Programming Mode: | keyboard,RS232&USB interface |
Hydraulic System: | Water/Air Self Cooling |
Working Condition: | -10℃-40°C 3 Phase 415/380v 50/60hz |
Air Force(Mpa): | 1 |
Total Power: | 22kw |
Over Dimension: | 3200x3000x2600mm |
Weight: | 6000KGS |
